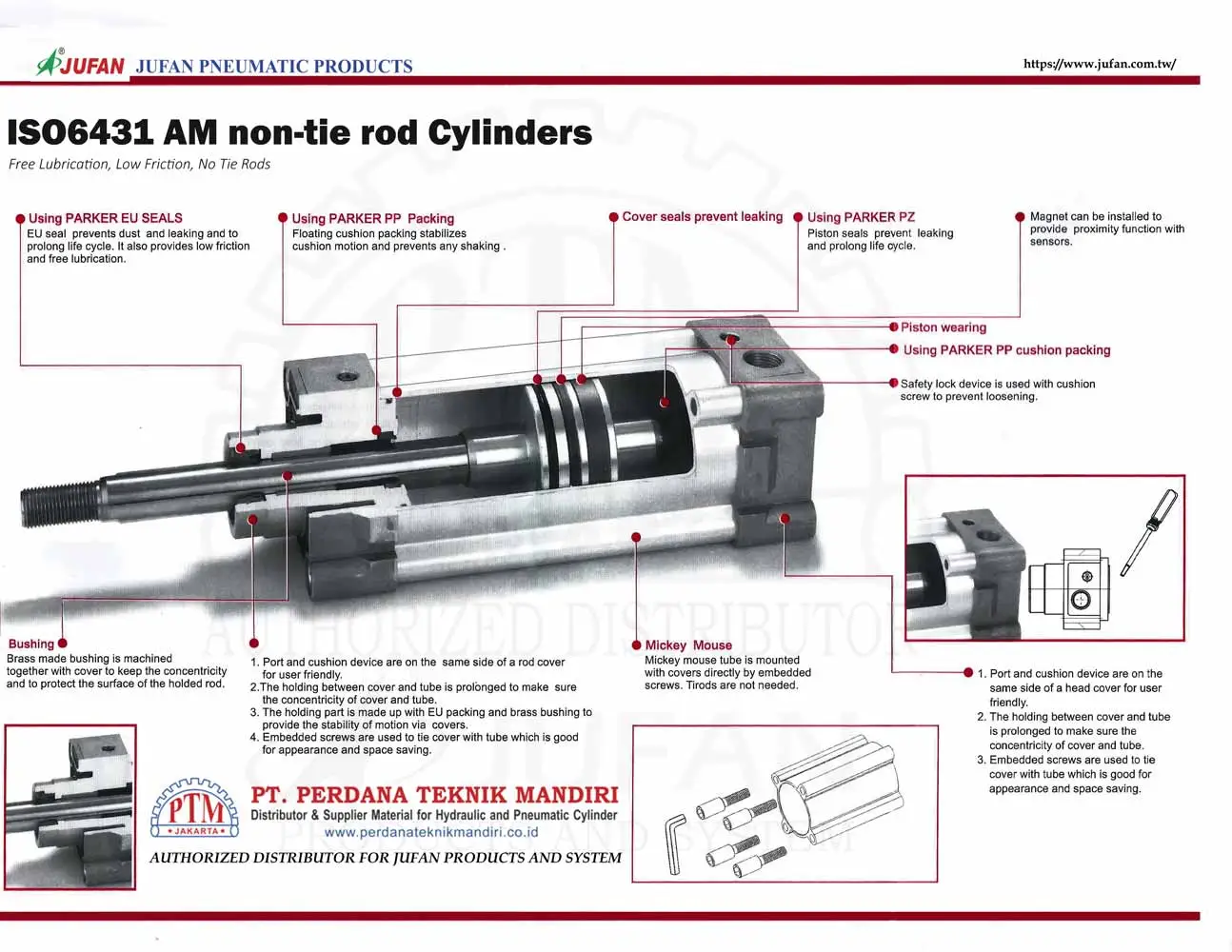

Structure and Parts List
Bore(mm) : 32~100
Item
Part name
Qty.
Item
Part name
Qty.
1
Rod cover
1
11
Cushion packing
2
2
Head cover
1
12
Piston wearing
1
3
Alumunium tube
1
13
Magnet
1
4
Front piston
1
14
Piston packing
1
5
Real piston
1
15
Cover O-ring
2
6
Rod
1
16
Cushion O-ring
2
7
Cover screw
8
17
Cushion screw washer
2
8
Cushion screw
2
18
Piston nut
1
9
Bushing
1
19
Rod nut
1
10
Road seal
1
20
Piston O-ring
1

Bore(mm) : 125~320
Item
Part name
Qty.
Item
Part name
Qty.
1
Rod cover
1
12
Piston wearing
1
2
Head cover
1
13
Magnet
1
3
Alumunium tube
1
14
Piston packing
1
4
Front piston
1
15
Cover O-ring
2
5
Real piston
1
16
Cushion O-ring
2
6
Rod
1
17
Cushion screw washer
2
7
Cover screw
8
18
Piston nut
1
8
Cushion screw
2
19
Rod nut
1
9
Bushing
1
20
Piston O-ring
1
10
Road seal
1
21
Tie-rod (option)
4
11
Cushion packing
2


Page 1 | 2
