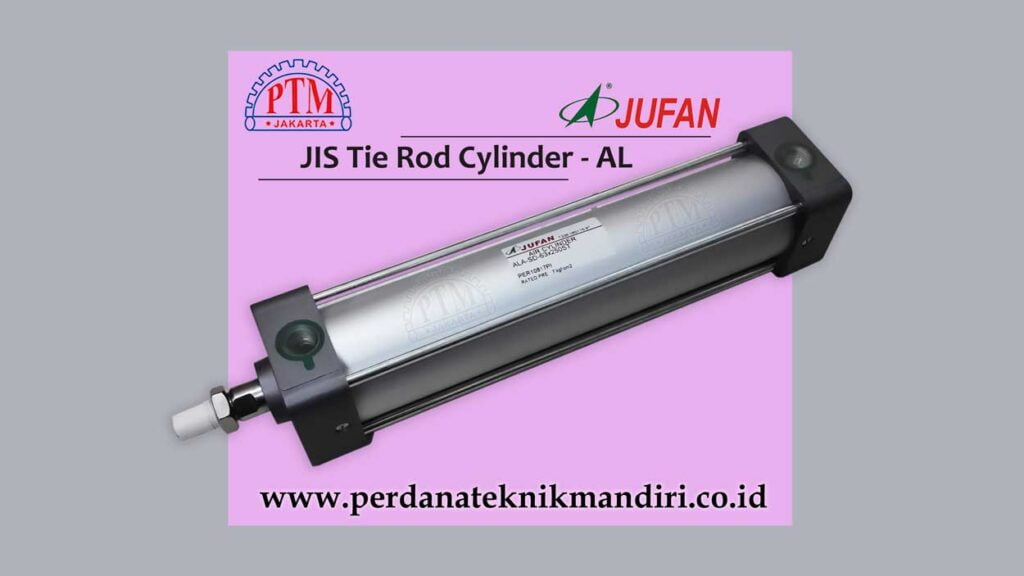

Jufan Pneumatic Cylinder - JIS Tie Rod Cylinder

Spesifikasi Lengkap Jufan Pneumatic Cylinder – JIS Tie Rod Cylinder Double Acting

Mounting type		Drawing
SD	Standard
FA (MF1)	Head rectangular flange
FB (MF2)	Cap rectangular flange
LB (MS1)	End angle flange
LA	Floor
CA	One ears elevis
CB	Two ears elevis
CC	Short elevis
TC (MT4)	Intermediate trunnion

Structure and Parts List


Item	Part name	Qty.
1	Rod cover	1
2	Head cover	1
3	Alumunium tube	1
4	Piston	1
5	Piston rod	1
6	Pisto rud nut	1
7	Tie rod	4
8	Rod cover tie rod nut	4
9	Head cover tie rod nut	4
10	cushion screw	2
11	Powder brozen bushing	1
12	Piston rod seal	1
13	Cushion seal	2
14	Piston wearing	1
15	Induction magnet	1
16	Piston seal	1
17	Cover O-ring	2
18	Cushion screw O-ring	2

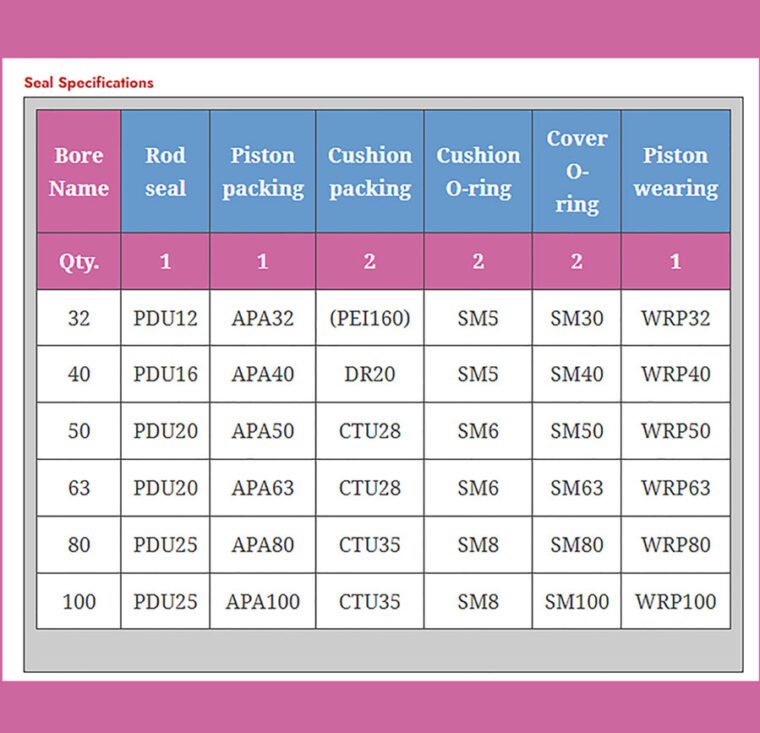

Seal Spesifikasi JIS Tie Rod Cylinder – AL
