JIS tie rod Cylinders (AL) - Double acting

Pneumatic Aplication

JIS tie rod Cylinders

JIS tie rod Cylinders AL - Double Acting Cylinder

Berikut Spesifikasi JIS Tie Rod Cylinders

JUFAN Pneumatic Cylinder - AL - Theoretical force

Bore (mm)	Rod (mm)	Action	Pressed Area (cm²)	Operating pressure (kgf/cm²)
Bore (mm)	Rod (mm)	Action	Pressed Area (cm²)	3	4	5	6	7	8
32	12	push	8.04	24	32	40	48	56	64
32	12	pull	6.91	21	27	34	41	48	55
40	16	push	12.56	38	50	63	75	88	100
40	16	pull	10.56	32	42	53	63	74	84
50	20	push	19.63	59	79	98	118	137	157
50	20	pull	16.49	49	66	82	99	115	132
63	20	push	31.16	93	125	156	187	218	249
63	20	pull	28.02	84	112	140	168	196	224
80	25	push	50.24	151	201	251	301	352	402
80	25	pull	45.34	136	181	227	272	317	363
100	25	push	78.5	236	314	393	471	550	628
100	25	pull	73.6	221	294	368	442	515	589

Bracket	Drawing
CA+CB
CB+BK

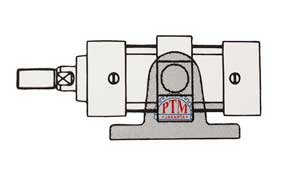

TC+BK

Standard stroke											Unit: mm

Rod end connectors	Drawing

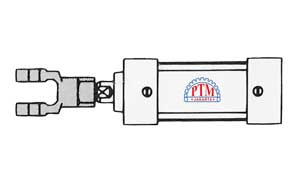

Y connector +pin
I connector

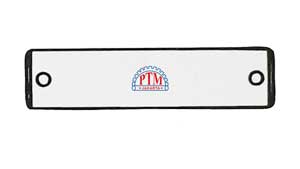

Pin

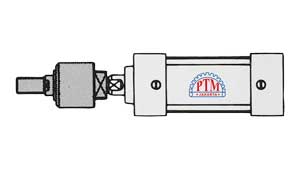

Floating joint (P13.2-P13.3)
Vertical bearing (PHS) (P13.4)

Cushion length
Bore	Length
32 • 40 • 50 • 63	20
80 • 100	25

Next Page 1 | 2 | 3
